DPX Hyper-V Agent

The DPX Hyper-V Agent is designed to facilitate efficient backup and recovery operations for virtual machines hosted on Microsoft Hyper-V servers. By integrating seamlessly with the Hyper-V environment, it provides robust data protection capabilities, including full VM backups and application-consistent snapshots. The agent ensures minimal disruption to running virtual machines while delivering reliable and quick restore options to meet diverse recovery requirements.

Installing DPX Hyper-V Agent on the Microsoft Hyper-V Host​

Installing with Wizard​

Before you back up any data from your Hyper-V VMs, you need to install the DPX Backup Agent on the host machine to enable agentless access to all VMs under this host.

  1. From your Hyper-V host, go to Catalogic MySupport website.

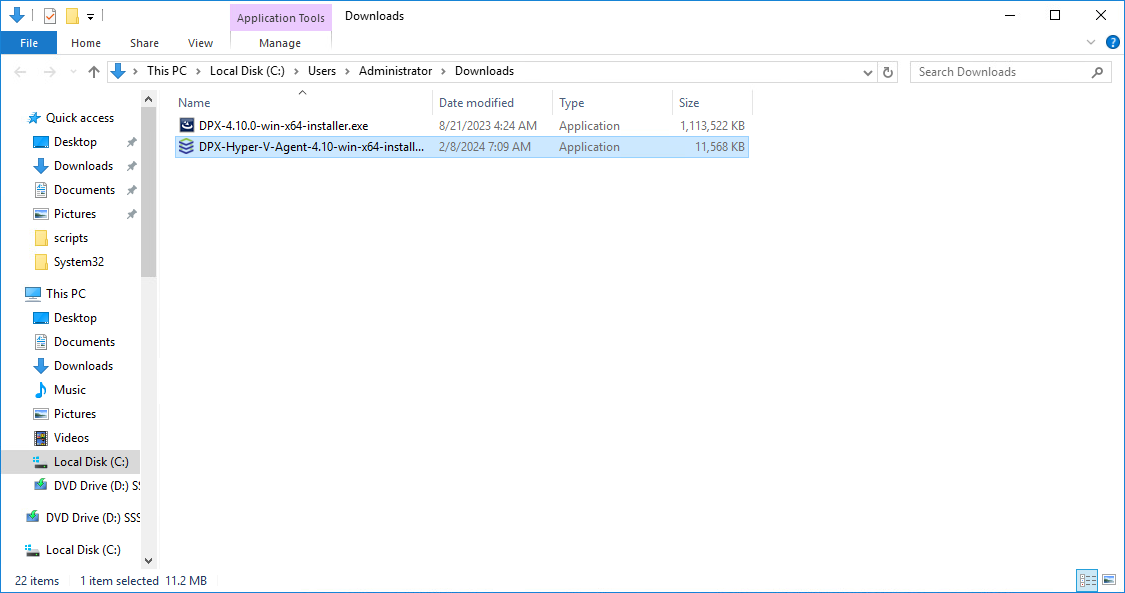

    On the DPX 4.10 product page, under Software Download, find the Microsoft Hyper-V Agent installer and download it on your Hyper-V host machine.
[image expected here]
  1. Run the installer and go through the wizard steps.
[image expected here]

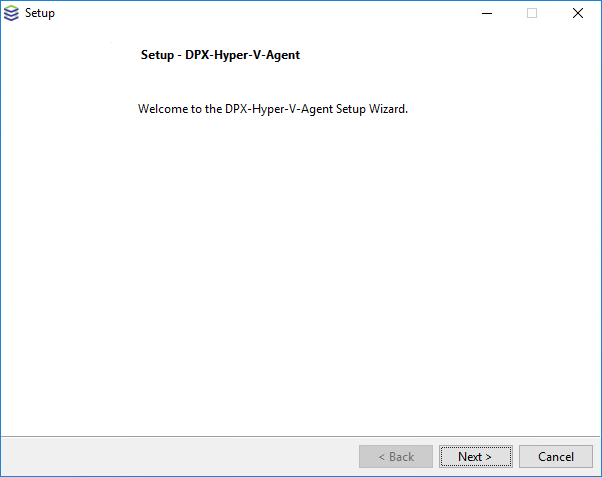

  1. In the Welcome step, click Next.
[image expected here]

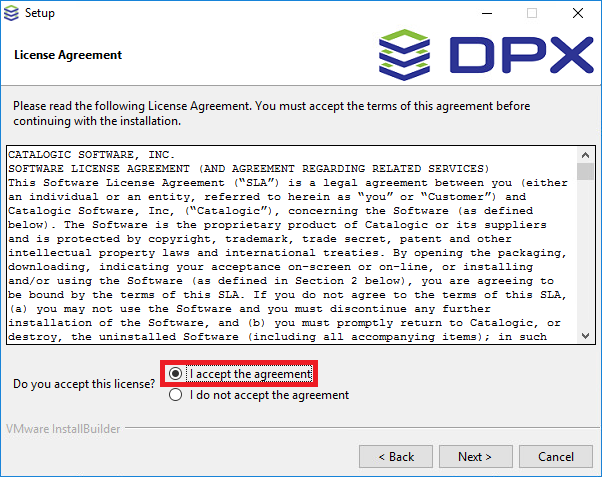

  1. In the License Agreement step, read the entire License Agreement carefully. You must accept the terms to continue. Click Next.
[image expected here]

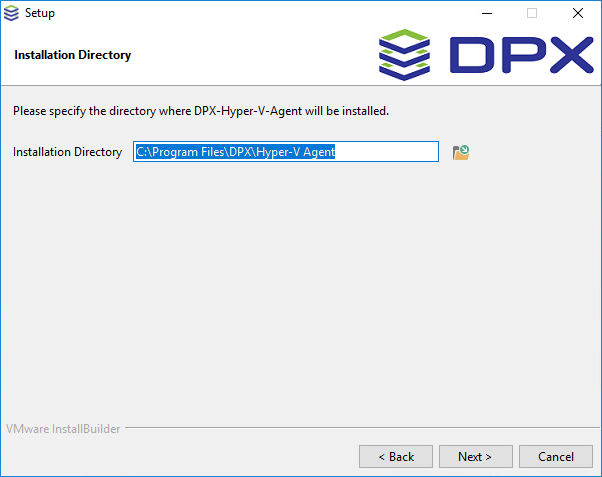

  1. In the Installation Directory step, specify the directory where the DPX Hyper-V Agent will be installed. The default directory is usually C:\Program Files\DPX\Hyper-V Agent.
    Click Next.
[image expected here]

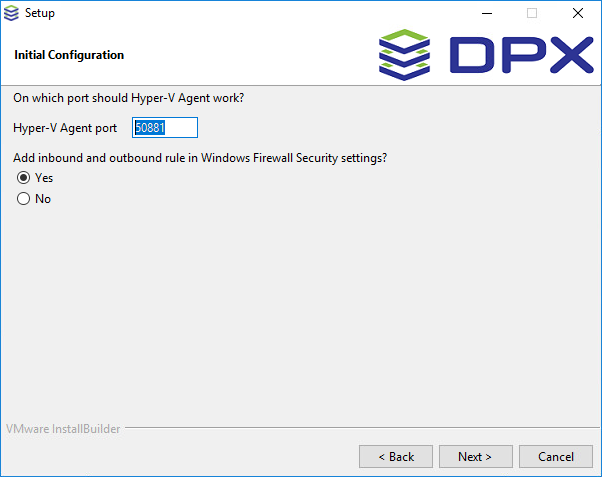

  1. Leave default parameters and click Next.
[image expected here]
  1. Specify the Username and Password of an account with Domain Administrator Privileges on the Hyper-V Host. If the agent is installed on a cluster environment, this must be a domain account (user needs to have remote access between the nodes in a cluster). For a standalone machine, a local administrator account is fine.
    The Authorization Key is used for secure communication with the agent.
Note.

The Authorization Key established in this step will be required when adding Hyper-V as a node in DPX and for further communication with the node. Ensure it is kept safe and at hand.

Click Next.

[image expected here]

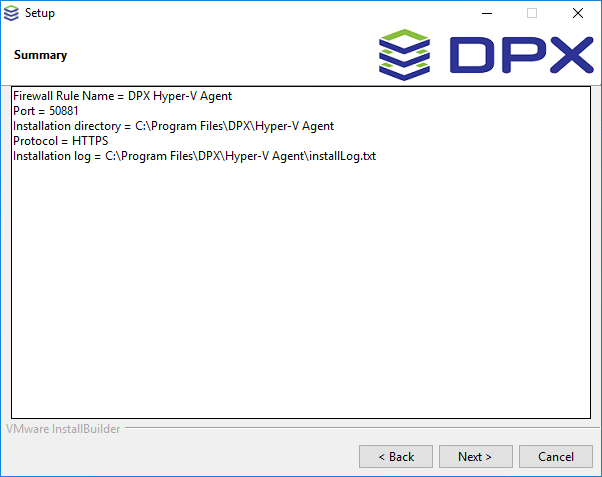

  1. Review the details in the Summary screen and click Next.
[image expected here]

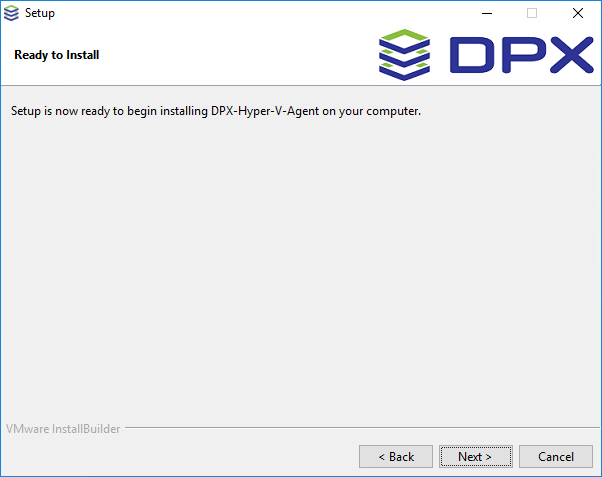

  1. The wizard is now ready to install the DPX Hyper-V Agent on your computer. Click Next to begin the installation.
[image expected here]
  1. The installation process will take a few minutes.
[image expected here]

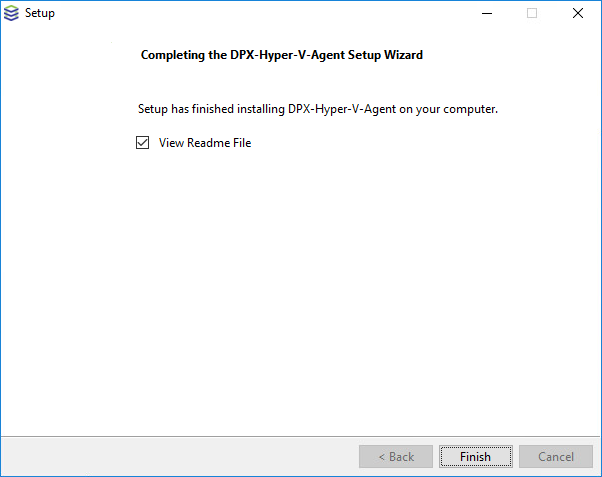

  1. Click Finish to complete the process and exit the wizard. If the View Readme File box is checked, the readme file will be displayed in a separate window.
[image expected here]

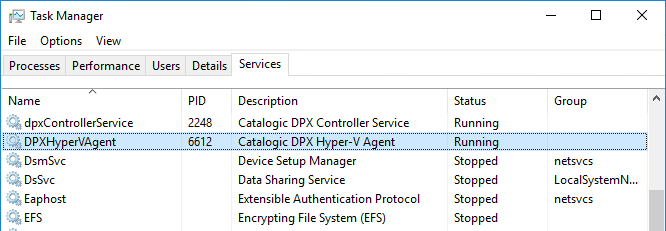

Upon successful installation, the DPX Hyper-V Agent service should be up and running on your Hyper-V host:

[image expected here]
Important.

Particular attention must be paid when providing credentials for the Hyper-V host, as the Installation wizard does not verify the credentials. As a result, even though the installation may seem successful, invalid credentials will prevent the DPX Hyper-V Agent service from installing, thus making the Hyper-V host unusable.

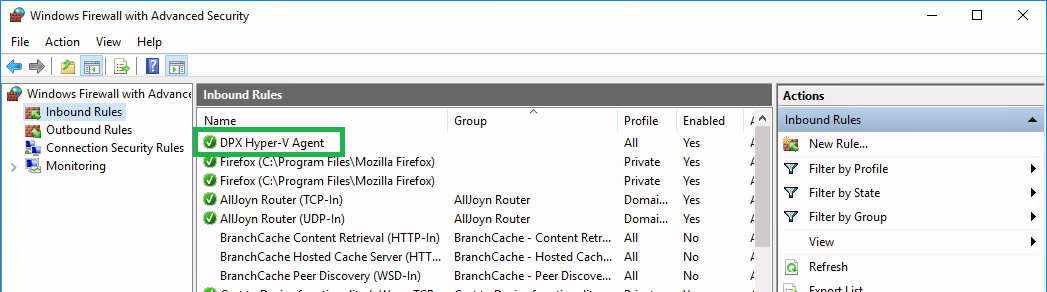

You should also be able to see a new firewall rule added for inbound traffic:

[image expected here]

After successfully installing DPX Hyper-V Agent on the Hyper-V host, proceed with Adding a Configured Hyper-V Host as a DPX Node.

Installing via Powershell​

If you prefer to install the Hyper-V Agent without using the Wizard and without any output, you can do it via powershell. The Hyper-V Agent installer requires the following parameters:

  • --mode
  • --password (Note: this is the authorization key)
  • --adminUsername
  • --adminPassword
& '.\DPX Hyper-V Agent-1.0-win-x64-installer.exe' --mode unattended --password 'secret' --adminUsername 'DOMAIN-NAME\user' --adminPass 'domainP@ss'

The installer also accepts the following optional parameters:

  • --port – port number (default: 50881)
  • --installDir – custom installation directory (default: C:\Program Files\DPX\Hyper-V Agent)
  • --firewallRuleName – custom name for firewall rule added by the installer (default: DPX Hyper-V Agent)

Here is an example with all required and optional parameters:

& '.\DPX Hyper-V Agent-1.0-win-x64-installer.exe' --mode unattended --password 'secret' --adminUsername 'DOMAIN-NAME\user' --adminPass 'domainP@ss' --port 12345 --installDir "C:\custom\installation\directory" --firewallRuleName "Custom rule name" --unattendedmodeui minimal

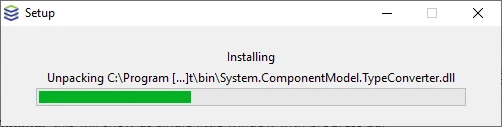

If an additional parameter --unattendedmodeui minimal is used, a small dialog with a progress bar will be shown during the entire installation process.

[image expected here]

When the installation is completed, you can add the Hyper-V as a node to DPX Master Server.

See also.

For more information, see Adding Hyper-V Nodes.
