Version: DPX 4.15

Adding a Configured Hyper-V Host as a DPX Node

Before adding a Hyper-V Host as a node to DPX, make sure you have a Hyper-V host with a DPX Hyper-V Agent installed. For details, see DPX Hyper-V Agent.

Restrictions.

Hyper-V backup and restore features are only supported by the web interface. The desktop interface does not allow for handling Hyper-V nodes and such nodes will not be visible in the desktop interface.

The procedure below describes adding a Hyper-V host as a node to the DPX Master Server.

  1. Open the DPX Master Server web interface in a web browser.
  2. In the left-hand side menu pane, go to the Nodes section.
  3. Click the Add Node button in the upper right corner to open the Add Node dialog.
[image expected here]

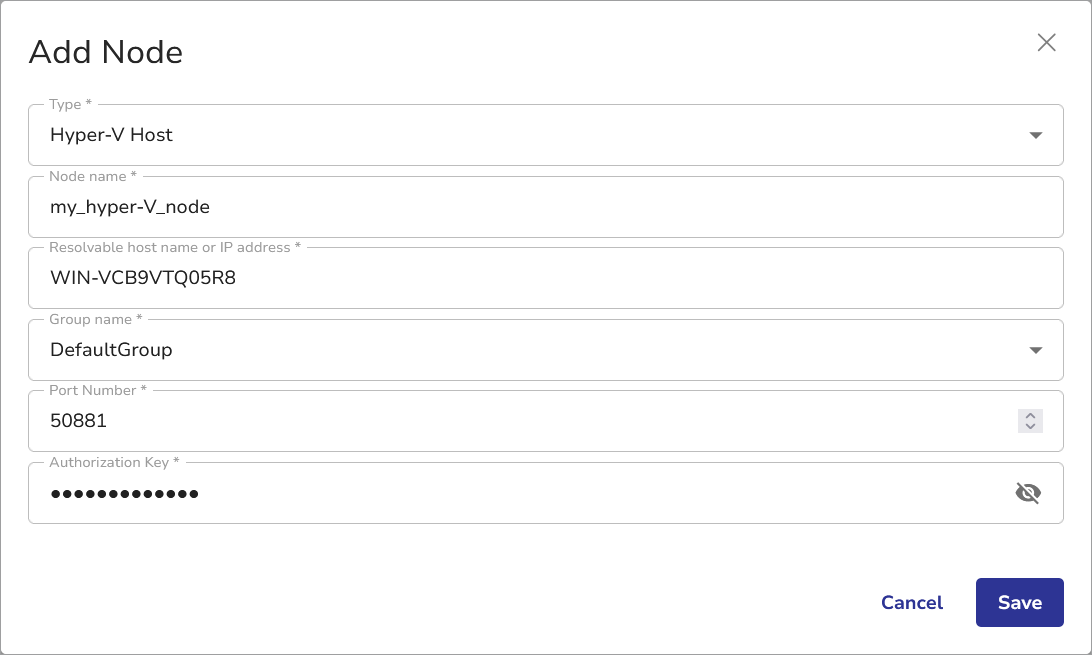

  1. Select Hyper-V Host as type. Specify the name for the new node (it must be unique throughout the Enterprise), provide a valid resolvable hostname or IP address, and select the group for the node.
[image expected here]
  1. Click Save.

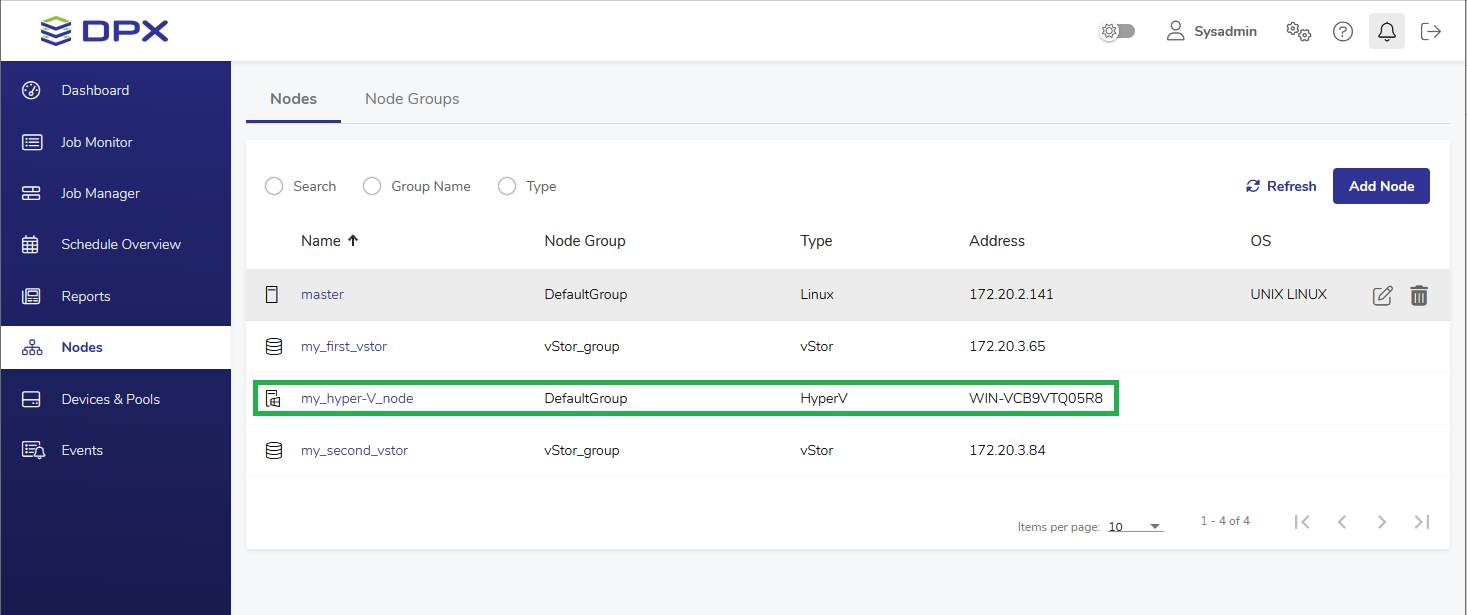

    The node is now added to the Master Server and is visible in the nodes list.
[image expected here]
Important.

DPX does not verify the connection with the Hyper-V host when the node is added. If you encounter an authorization or connection error with the Hyper-V host, you might need to remove the node and add it again, paying special attention to providing a hostname or IP address that is valid within your network.

See also.

For more general information about nodes, see Nodes.
