Advanced Job Options

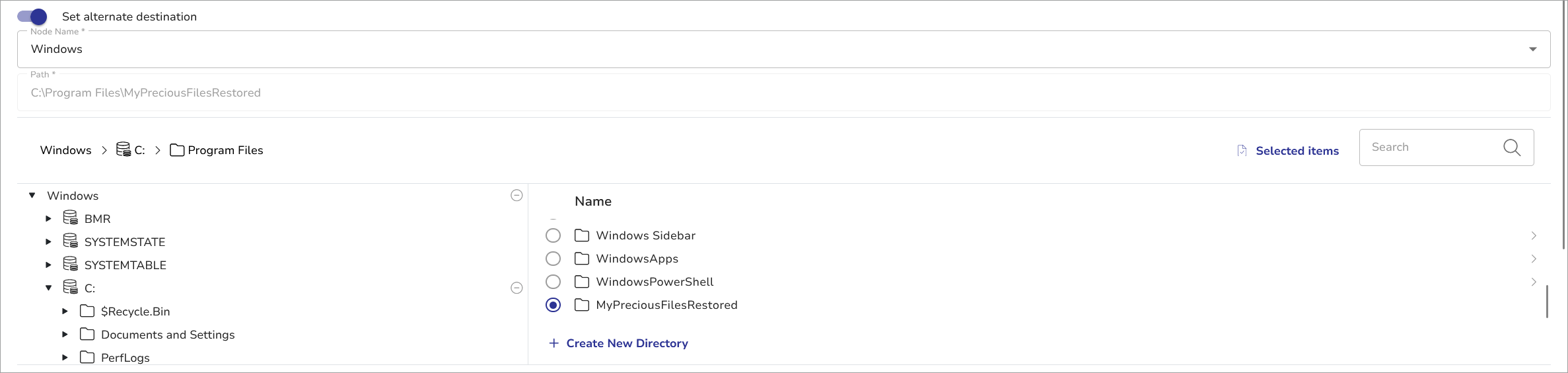

Set alternate destination

By default, DPX will restore the files or volumes specified in the File Browsing step to their original location. You may override this setting by indicating a directory on the same or another node.

1. Specify the Node Name. This may be the same node the data were backed up from, or another machine.

Restrictions.

File Restore From Block Backup only handles alternate destinations with similar operating systems. E.g. restoring Linux files on a Windows node or vice versa is not supported.

2. Select the destination folder in the tree view. You can use the + Create New Directory button to restore data to a non-existing location; DPX will create it.

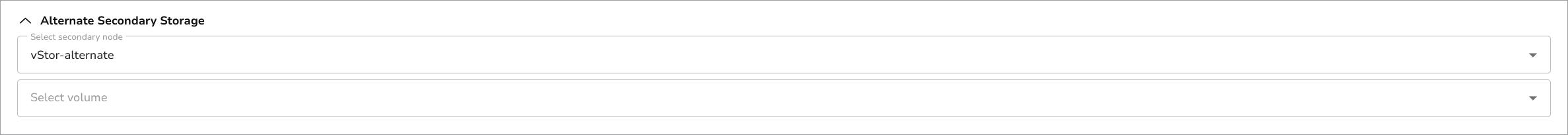

Alternate Secondary Storage

In all previous steps of creating the restore job, the available selections were based on the backup metadata stored on DPX. This means that DPX is aware of all backups made by the user and where they are stored. If, during backup or at a later stage, the backup data have been replicated to a secondary location and the primary location becomes corrupt or inaccessible, you can choose to restore your data from such secondary location using this option.

1. Select the secondary storage node from the drop-down list.
2. Select the volume where the alternate backup is stored.

DPX will attempt to identify the files or directories specified in previous steps. If this proves impossible, the following warning will be displayed:

See also.

For more information, see Creating vStor Partnerships in vStor 4.15 documentation.

Set schedule

Schedule the restore job. The time field is using your browser’s time zone. For example, if you have DPX in London and access the DPX web interface from New York, specify the time in US Eastern Time.

Important.

When specifying a schedule, make sure the Delete restore job upon completion toggle is switched off. Otherwise, the job will be deleted upon its first successful completion.

Also please note that in the current version of DPX, restore jobs cannot be edited. This also includes job scheduling.

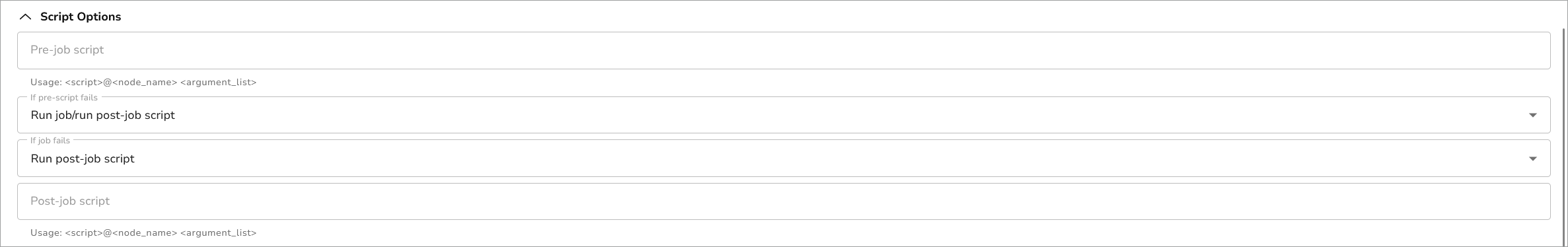

Script Options

As with backup jobs, you can add script options for this restore job.

Pre-Job Script

Enter the name of a script to execute prior to the actual job.

Basic usage: <script>@<node_name> <argument_list>

If Pre-Script fails

The action be taken if the Pre-Job Script fails to complete:

• Run Job/Run Post-Job Script
• Skip Job/Run Post-Job Script
• Skip Job/Skip Post-Job Script

If Job fails

The action to be taken if the Job fails to complete:

• Run Post-Job Script
• Skip Post-Job Script

Post-Job Script

Enter the name of a script to execute after the actual job.

Basic usage: <script>@<node_name> <argument_list>

See also.

For detailed information about pre- and post-job scripts, including all valid definitions, see Pre-Scripts and Post-Scripts.

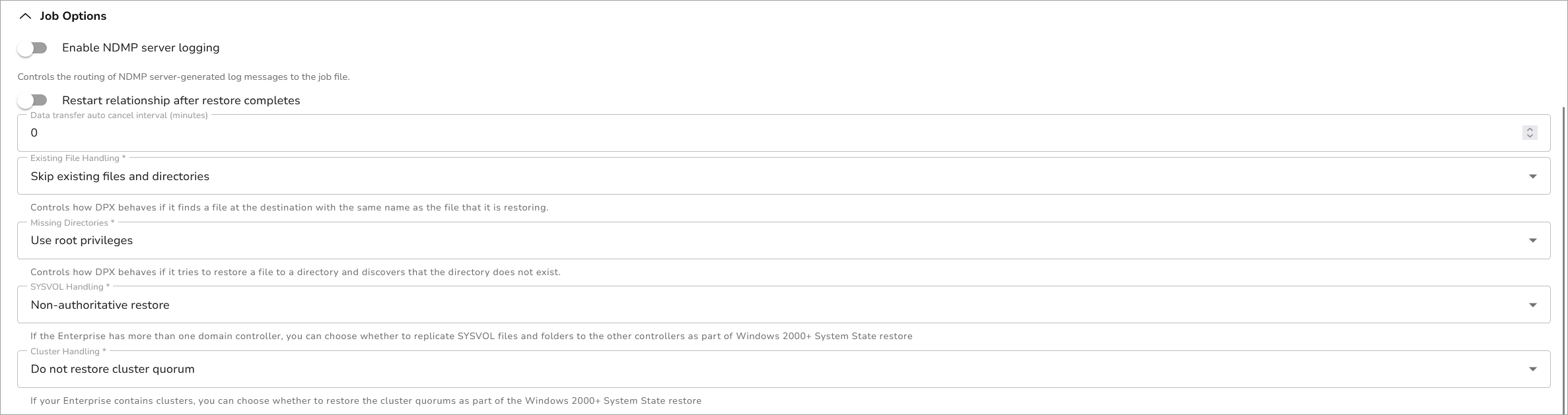

Job Options

Enable NDMP server logging

Controls the routing of NDMP server-generated log messages to the job log file.

Toggle on	All NDMP server log messages will be routed to the master server’s job log file. Yes is the default.
Toggle off	The NDMP server log messages will be logged locally in the NDMP client node log file instead of in the master server’s job log file.

Restart relationship after restore completes

This option only takes effect when you restore an entire SnapVault filer-to-filer backup instance to its original location.

Toggle on	Immediately after restore, DPX resynchronizes the restored backup instance as the most recent backup.
Toggle off	Do not resynchronize the restore.

Data transfer auto cancel interval (minutes)

This option comes into play if a job does not get an indication of “active” status during the data transfer phase of the job. Catalogic DPX initiates job cancellation after this interval, specified in minutes, has lapsed.

Existing File Handling

Tells DPX how to behave if it finds a file at the destination with the same name as the file that it is restoring.

Skip Existing Files and Directories	Does not write over the existing file or directory if it has the same name as the one being restored.
Replace Existing Files	Restores the file to a temporary file, ensures that the restore is successful, and then writes over the existing file with the like-named file being restored.
Replace Existing Files and Directories	For existing directories, restores directory characteristics only, such as date, time, and owner. For existing files, restores file to a temporary file, ensures that the restore is successful, then writes over the existing file with the like-named file being restored.
Delete Existing Files Before Restore	Deletes the existing file before restoring the like-named file. Use this option when disk space limitations prohibit using Replace Files.
Rename Restored Files	Renames the file being restored to a name derived from the existing file. On NTFS and UNIX, DPX appends .R01 to the filename. If filename.R01 exists, DPX uses .R02 and so on. On FAT, a file extension of .R01 is used. For example, file ABCD.TXT is restored as ABCD.R01. If ABCD.R01 exists, ABCD.R02 is used, and so on.

Missing Directories

Controls how DPX behaves if it tries to restore a file to a directory and discovers that the directory does not exist

Use Full Privileges	Uses the file privileges the file possessed when it was originally backed up.
Use Parent Privileges	Applies the file privileges of the parent directory into which the files are being restored.
Use Root Privileges	Applies the file privileges of the root directory into which the files are being restored.

SYSVOL Handling

If the Enterprise has more than one domain controller, you can choose whether to replicate SYSVOL files and folders to the other controllers as part of the Windows 2000+ System State restore.

Authoritative Restore	Restores SYSVOL files and folders in a primary manner and forces that data to be replicated to the other primary domain controllers.
Non-Authoritative Restore	Restores SYSVOL files and folders locally and allows that data to get updated via the normal replication process. Non-Authoritative Restore is the default.

Attention!

When there are replication partners, selecting Authoritative Restore can result in unexpected behavior. For more information, see Creating vStor Partnerships in vStor 4.15 documentation.

To perform an authoritative restore on the Active Directory, you must run the Microsoft Ntdsutil utility after you have restored the System State data but before you restart the domain controller. For more information about the Ntdsutil utility and authoritative restore, refer to your Microsoft documentation.

Cluster Handling

If your Enterprise contains clusters, you can choose whether to restore the cluster quorums as part of the Windows 2000+ System State restore.

Do Not Restore Cluster Quorum	DPX does not restore the cluster quorum. Do Not Restore Cluster Quorum is the default.
Restore Cluster Quorum	DPX restores the cluster quorum. However, if other cluster nodes are active or if the cluster quorum has changed since backup, the cluster quorum restore may terminate.
Restore Cluster Quorum (Force the Recovery)	DPX restores the cluster quorum even if other cluster nodes are active or if the cluster quorum has changed since backup. Any changes made to the cluster quorum after the backup will be lost.
