Small

• Network: minimum 1Gb/s
• Number of sites: 1
• Number of DPX vPlus installations: 1 server along with node
• DPX vPlus min. 4 vCPU and 6 GB RAM
• Number of backup threads: 3-4 (default)
• Backup window: 8 hours
• Data to backup: up to 2.5 TB
• staging space: your_largest_VM * backup threads

As mentioned above, network speed is a very important factor. If you have a 1Gb/s connection between the server, node, and backup clients, then during the 8 hours of the backup window we can assume that if we load the network at 70% of its capacity, we should transfer 2.5TB of data

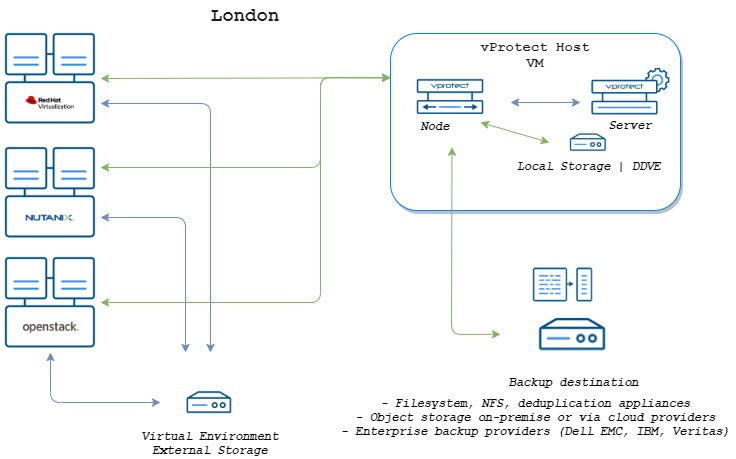

In this scenario, DPX vPlus (server and node) can, for example, be deployed as a VM using any of the installation methods.
