Dashboard

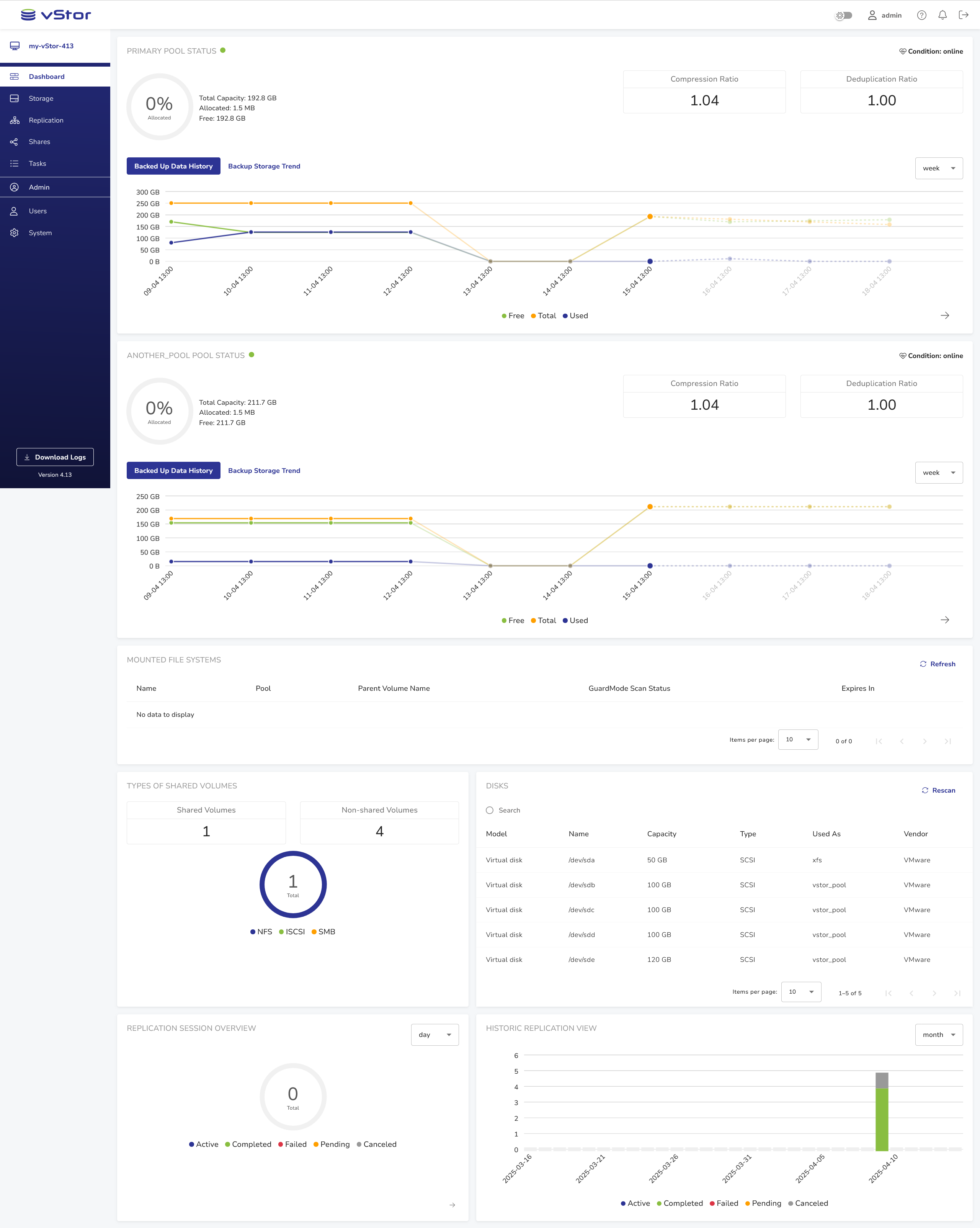

Dashboard Landing View

After successful login, the vStor dashboard is shown. It presents an overview of the vStor’s performance, such as pool usage, mounted file systems, volumes, disks and replication summary.

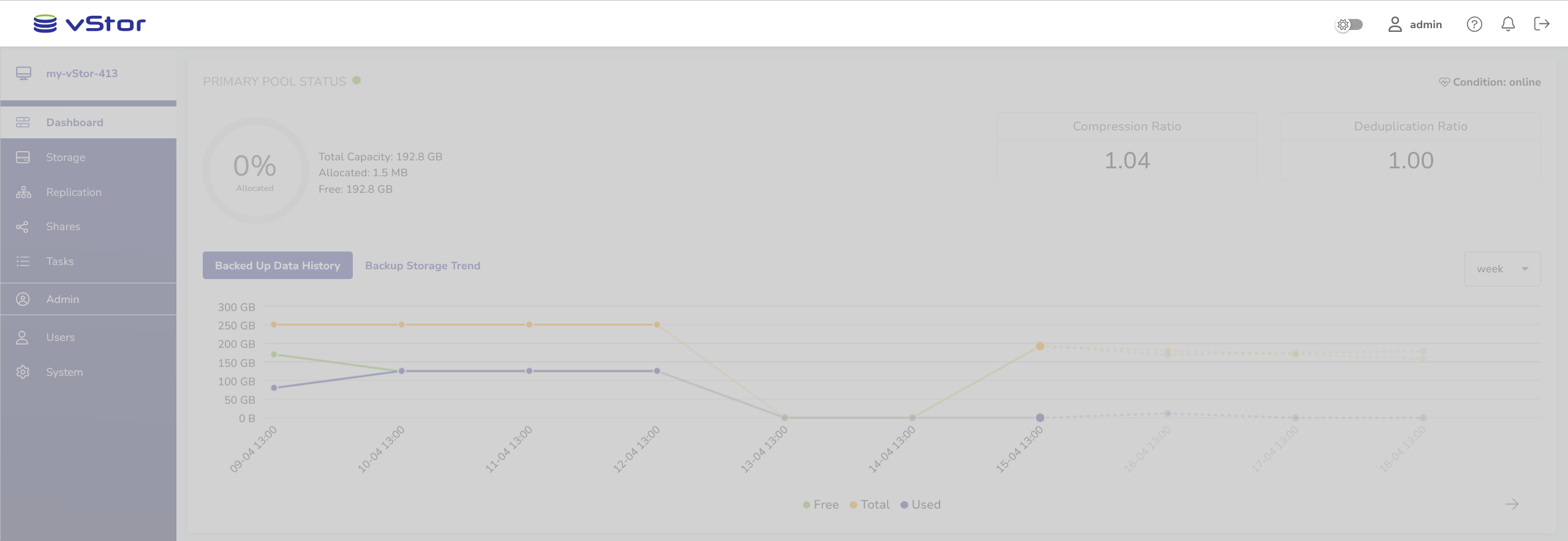

Header

The header contains the vStor logo and several controls:

• Dark mode toggle to switch between the light and dark display modes
• User settings with password, multifactor authentication, API key and e-mail options
• Help menu with links to Documentation, Knowledge Base, Support and vStor information
• Notifications area displaying information about recent events
• The log-out button .

Collapsable Sidebar

The sidebar is the dark blue section on the left-hand side of the window. From version 4.13, vStor features a collapsible sidebar for enhanced screen space.

Hover over the sidebar and click the blue dot with an arrow pointing left to collapse.

Full-sized sidebar

Hover over the collapsed sidebar and click the blue dot with an arrow pointing right to expand.

Collapsed sidebar

Apart from the Dashboard, the sidebar provides access to the following sections of the interface:

• Storage
  Section for managing pools, volumes and disks.
• Replication
  Section where partnerships, replication relationships and replication schedules are managed.
• Shares
  Share and host management section.
• Tasks
  This section displays current tasks vStor Snapshot Explorer tasks.
• Users (Administrator Only)
  User management section, visible only for administrators.
• System (Administrator Only)
• System settings and management section, visible only for administrators.\
