Version: vStor 4.13

Replication

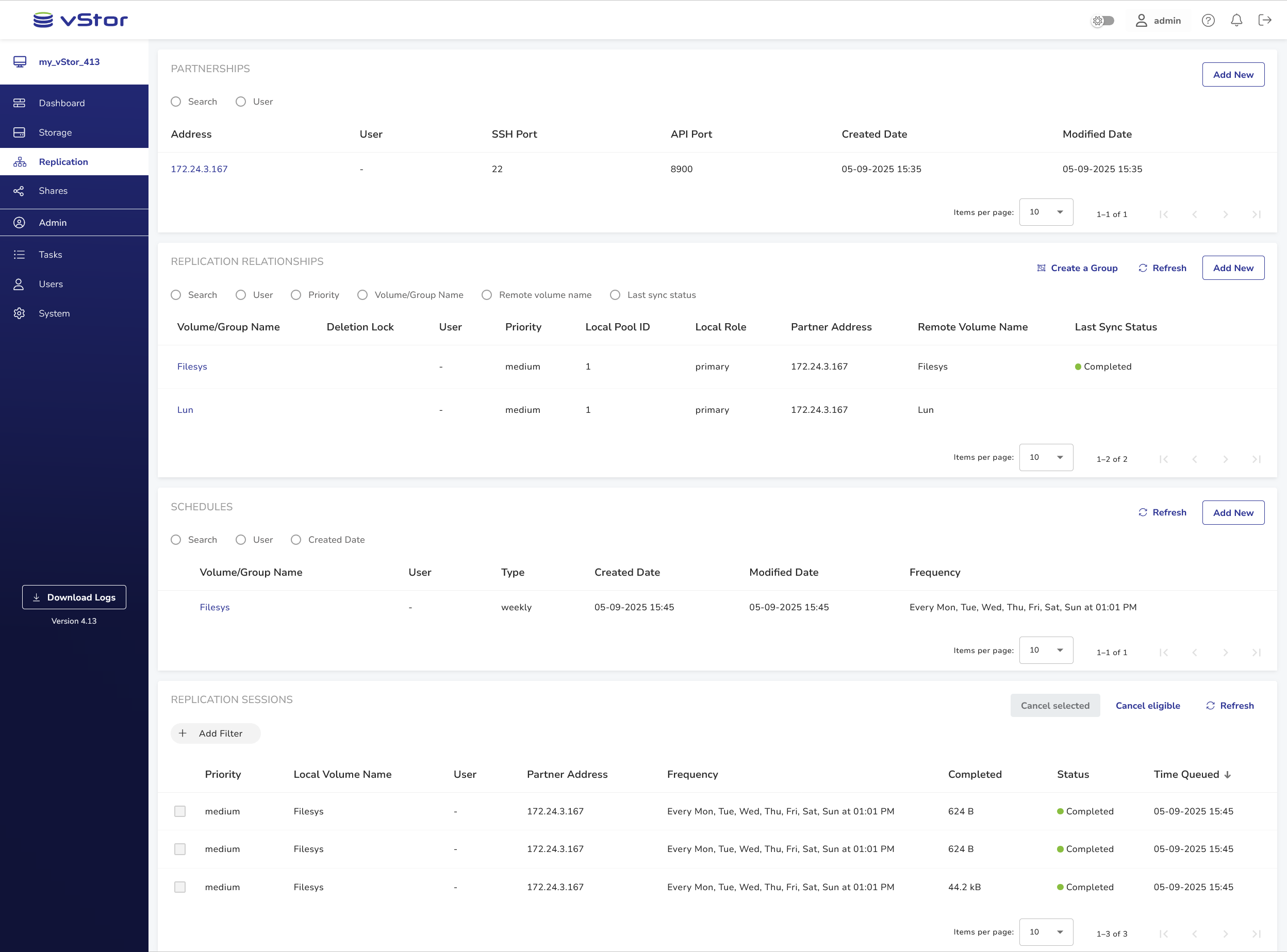

The Replication view provides an overview and management options for replication between local and remote systems. It is divided into four subsections, described below.

[image expected here]

Partnerships​

This section displays partner vStors configured for replication.

  • Use the Add New button to configure a new partnership.
  • Click the partner’s address to open the partner’s GUI in a new tab.
  • Click the icon to edit a partnership.
  • Click theicon to delete a partnership. You will be prompted to confirm your choice and select some partnership removal options.
See also.

For more information about vStor partnerships, see vStor Partnerships.

Replication Relationships​

This section displays configured replication mappings between the local vStor and the partner vStor volumes.

  • Use the Add New button to configure a new replication relationship for a local volume.
  • Click the volume’s name to display the volume details in the Storage view.
  • Click the Create a group button, to manage groups of replication relationships.
  • Click theicon to delete a replication relationship. You will be prompted to confirm your choice and select some replication removal options.
See also.

For more information about replication relationships, see:

Schedules​

This section displays scheduled replication tasks for volumes.

  • Only one schedule per replication relationship is possible.
  • Use the Add New button to add a schedule for a replication relationship.
  • Click theicon to delete a schedule. You will be prompted to confirm your choice.
See also.

For more information about replication relationship schedules, see Scheduling a Replication.

Replication Sessions​

This section displays replication session details, including their status or progress (where applicable).

  • Use filters to narrow down the view.
  • Click the Cancel eligible button to cancel all Active or Pending sessions. You will be prompted to confirm your choice.
  • Select multiple Active or Pending sessions and click the Cancel selected button to cancel those sessions. You will be prompted to confirm your choice.
