vStor System Settings

Catalogic vStor offers a comprehensive set of settings allowing you to customize and optimize your storage environment. These settings can be accessed through the System view in the navigation sidebar. The System view consists of two tabs: System Settings and Network Settings.

Note.

The System view is only available for users with Admin role. For more information, see vStor User Roles.

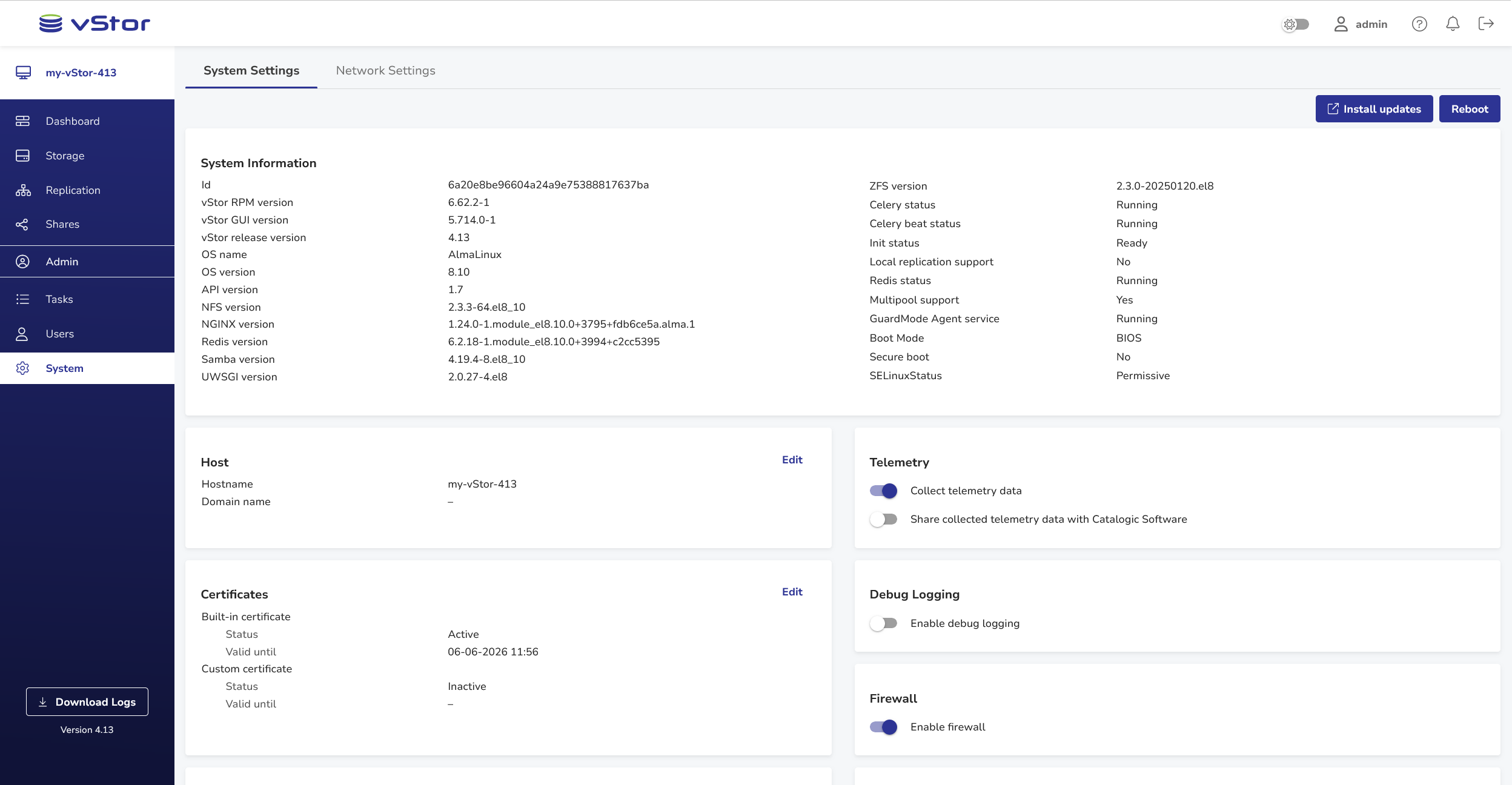

The System Settings tab features a number of panes, each dedicated to a particular group of settings or parameters. See detailed description of each section below.

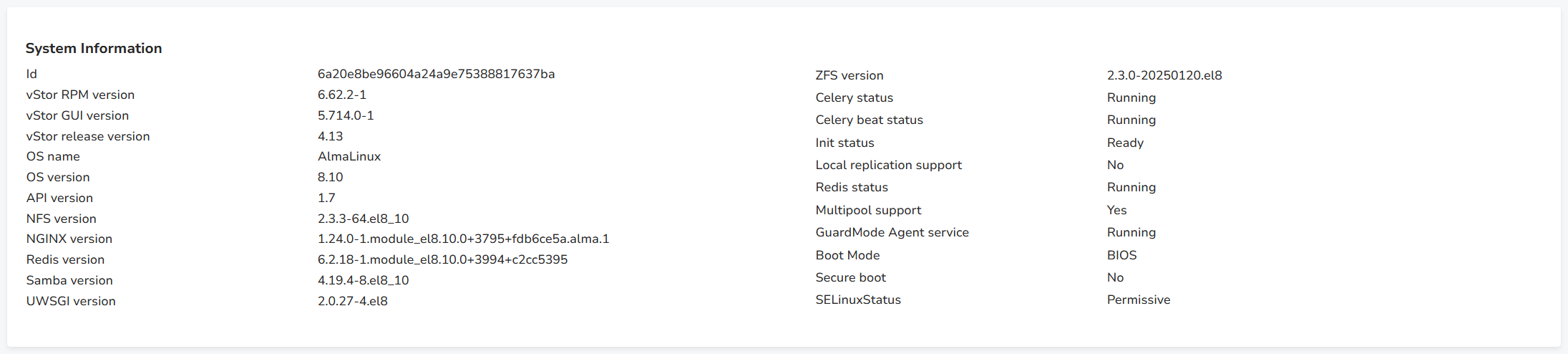

System Information

This section gathers general information about the vStor’s OS, library versions and statuses.

Host

This section displays hostname and domain name information.

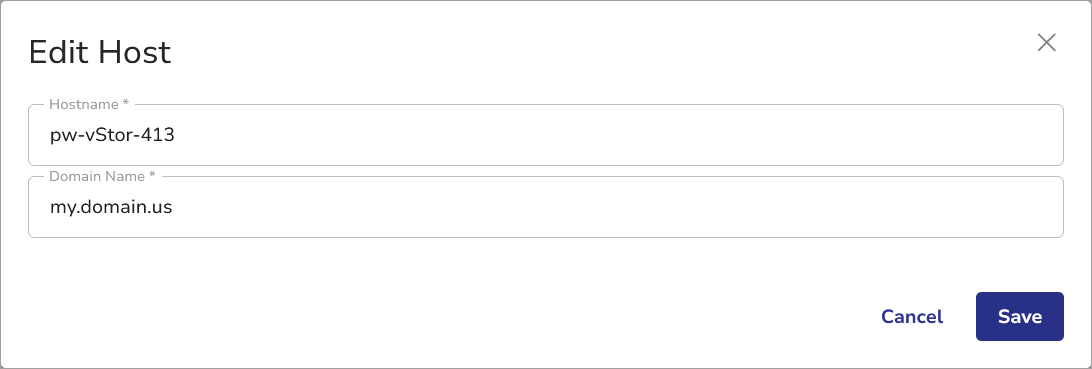

You can edit this section by clicking the Edit button to launch the Edit Host dialog window.

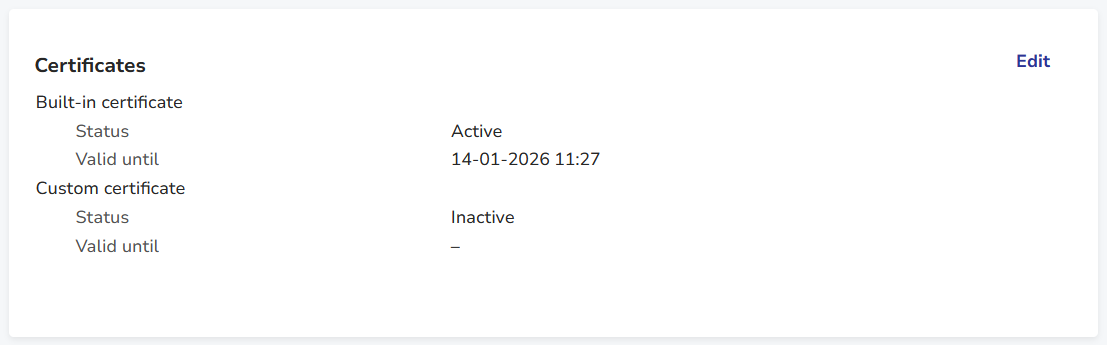

Certificates

This section allows you to manage certificates in Catalogic vStor.

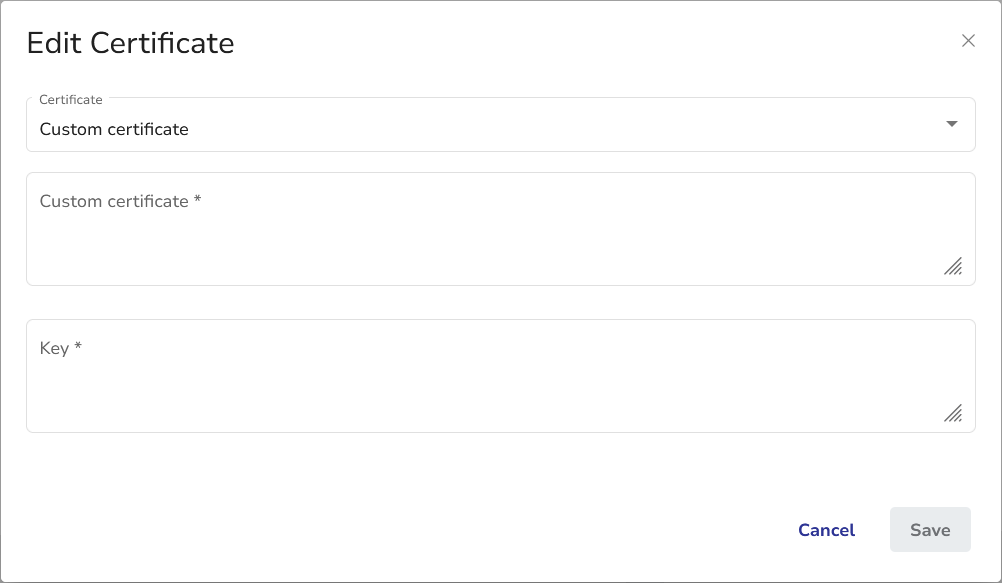

You can edit this section by clicking the Edit button to launch the Edit Certificate dialog window.

You can use the built-in certificate or add a custom one by selecting Custom certificate from the Certificate dropdown.

See also.

For more details on certificates in vStor, see Managing Certificates.

General

This section gathers the general settings of your vStor machine.

Async snapshot creation timeout

Sets the maximum time (in seconds) vStor will wait for an asynchronous snapshot creation operation to complete before marking it as failed.

Configuration retention time

Specifies how long (in days) vStor will retain configuration backups.

Dashboard refresh time

Sets the interval (in seconds) for automatically updating the vStor dashboard.

Mount file systems limit

Sets the maximum number of file systems simultaneously mountable during agentless file restores.

Mounted file system volume retention timeout

Controls the default time (in minutes) a mounted volume from an agentless file restore will remain accessible.

NFS server threads

Controls the number of threads dedicated to the NFS server for improved performance.

Schedule timezone

Sets the timezone used for replication and AutoSnapshot schedules.

Snapshot creation timeout

Sets the maximum time (in seconds) vStor will wait for a snapshot creation operation to complete before marking it as failed.

Volume creation timeout

Sets the maximum time (in seconds) vStor will wait for a volume creation operation to complete before marking it as failed.

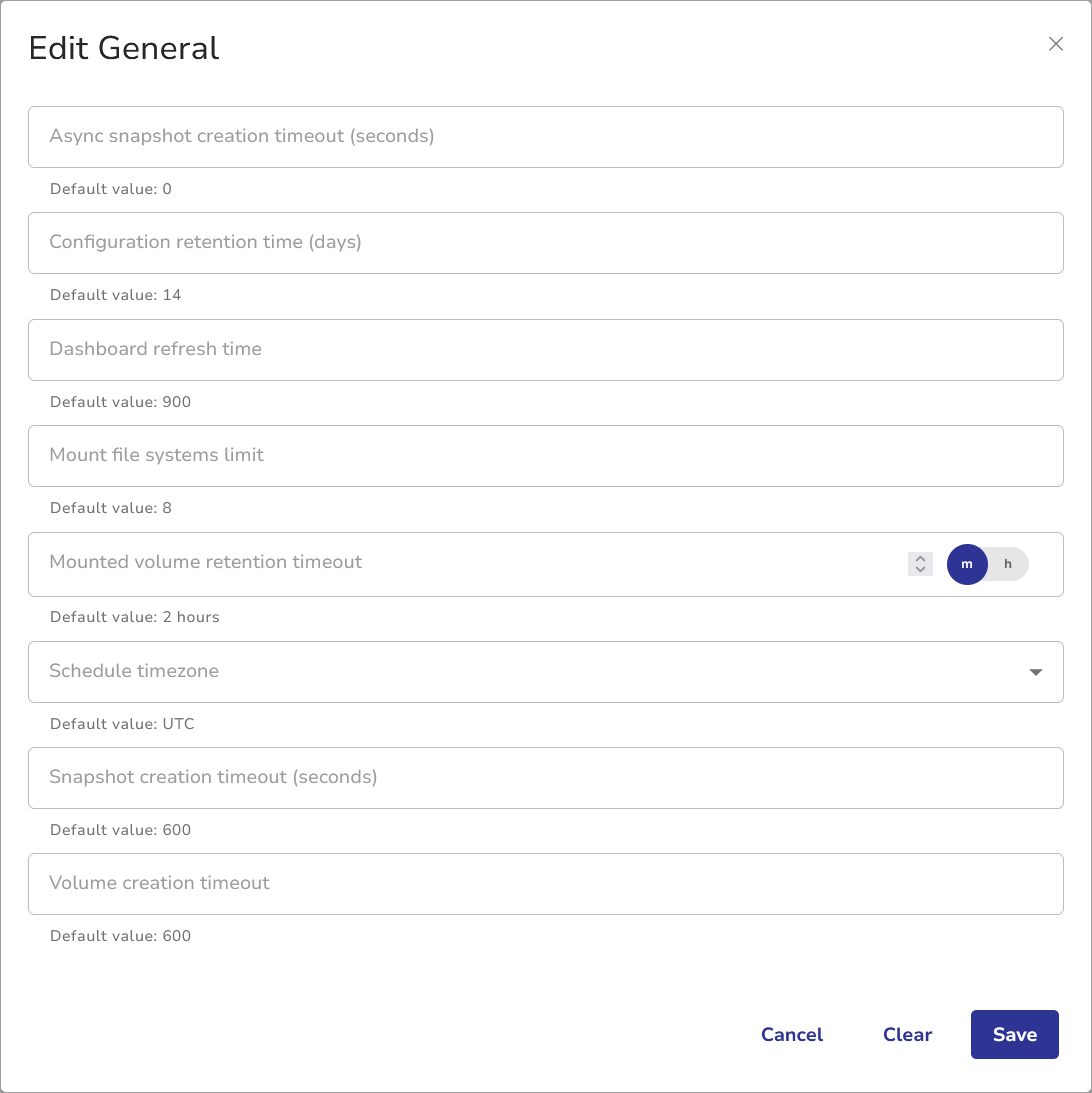

You can edit this section by clicking the Edit button to launch the Edit General dialog window.

Tip.

Use the Reset button to restore default values. You will be prompted to confirm your decision.

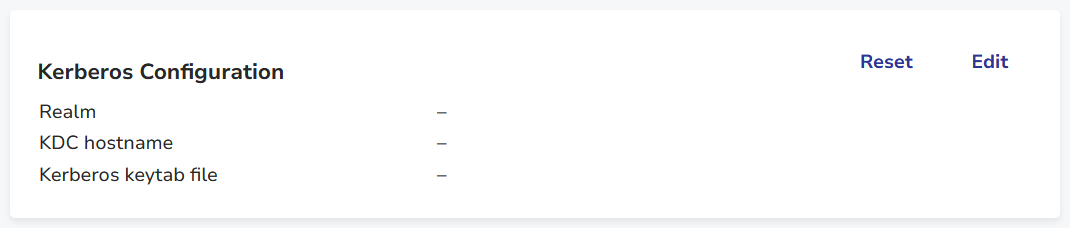

Kerberos Configuration

This section displays the current Kerberos configuration.

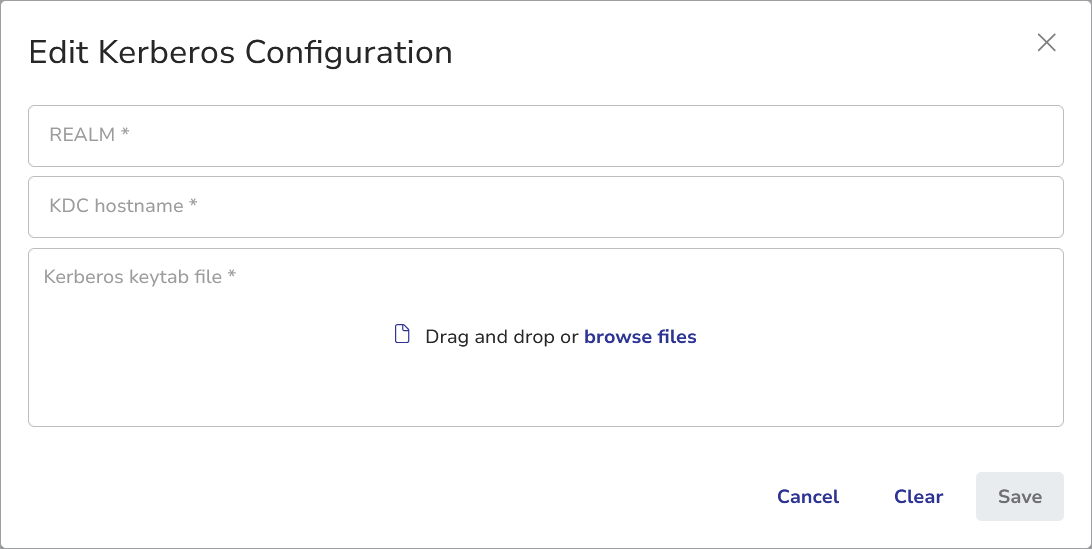

You can edit this section by clicking the Edit button to launch the Edit Kerberos Configuration dialog window.

Realm

Specifies the domain over which the Kerberos authentication server has the authority to authenticate a user, host or service.

KDC Hostname

Specifies the Key Distribution Center (KDC) host.

Kerberos Keytab File

Indicates the file containing key pairs for Kerberos authentication.

Tip.

Use the Reset button to restore default values. You will be prompted to confirm your decision.

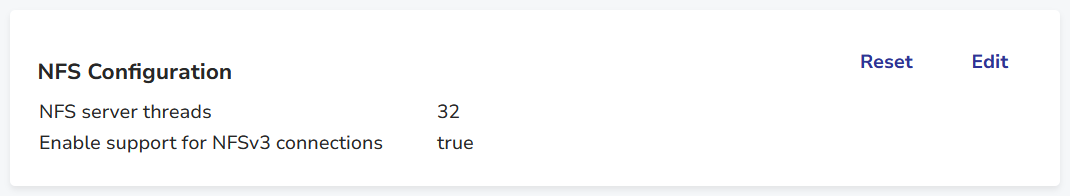

NFS Configuration

This section displays the current NFS configuration.

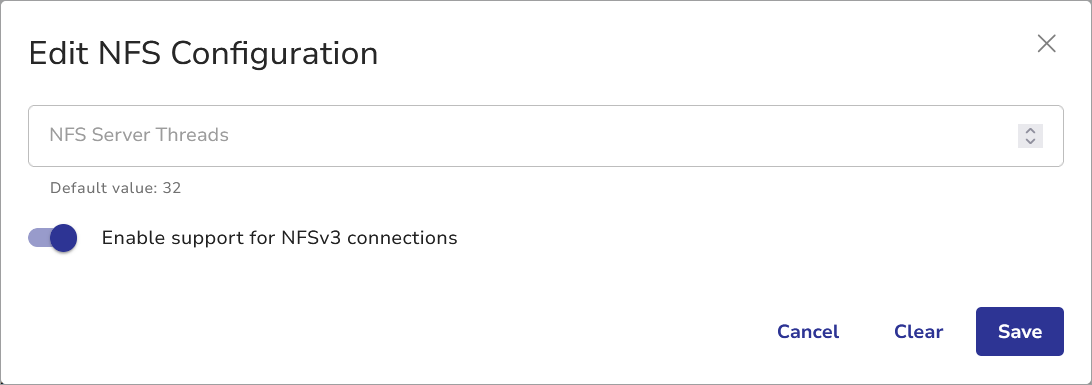

You can edit this section by clicking the Edit button to launch the Edit NFS Configuration dialog window.

NFS Server Treads

Specifies the maximum number of threads on the NFS server. The default value is 32.

Enable Support for NFSv3 Connection

This toggle controls compatibility with NFS version 3.

Tip.

Use the Reset button to restore default values. You will be prompted to confirm your decision.

Encryption Keystore

Encryption Keystore is a remote location where encryption keys for vStor volumes are stored. Starting with version 4.15, vStor supports external key management using the Key Management Interoperability Protocol (KMIP).

1. Navigate to System > System Settings tab > Encryption Keystore pane.

2. Click Edit to launch the Edit Encryption Keystore pane.

Configuring KMIP Encryption Keystore

1. Select KMIP Keystore as Type.

2. Populate the dialog with required information and certificates.

3. Click Test to verify the keystore accessibility (optional).

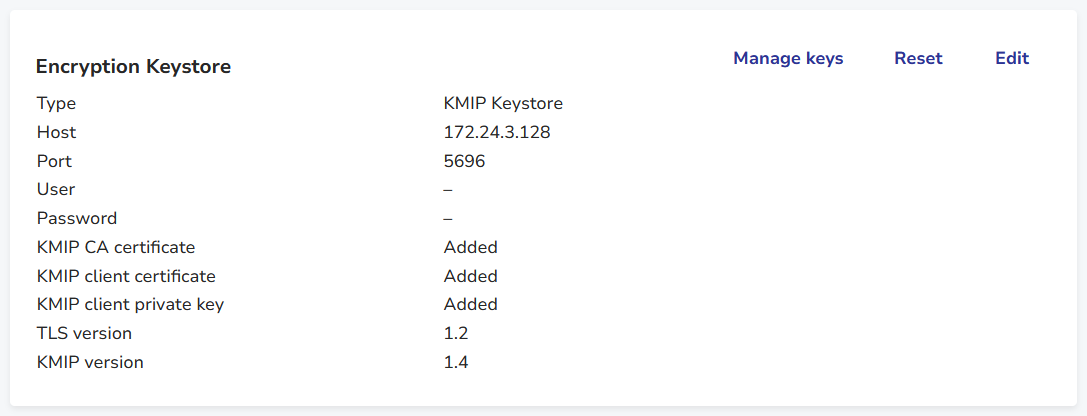

4. Click Save. The configuration is now saved.

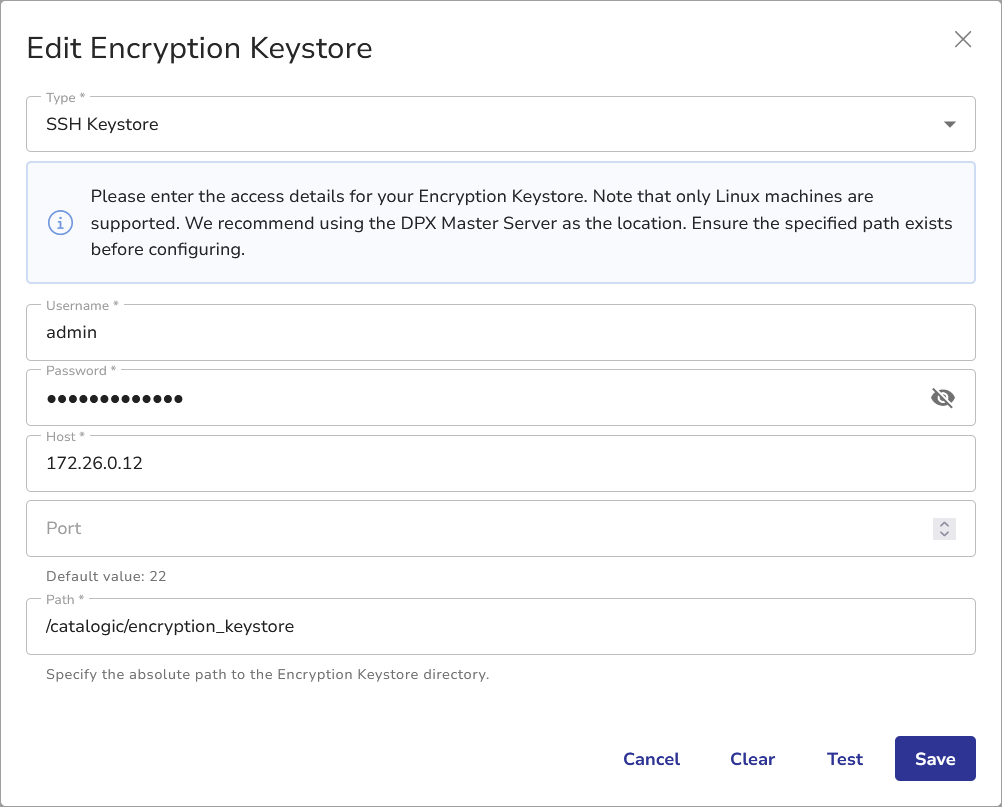

Configuring SSH Encryption Keystore

When configuring the SSH Encryption Keystore in vStor, the user specifies an existing remote location for the keystore and credentials for the user with writing access to the specified directory.

Tip.

We recommend using your DPX Master Server as the remote Encryption Keystore, but you can use any Linux machine.

Note. User authentication must not require any additional steps besides specifying the username and password , e.g. multifactor authentication. In such a case, a connection error will be thrown.

Note.

To save edits made to the Encryption Keystore dialog, you need to specify the valid password to the remote Encryption Store’s location.

1. Populate the dialog according to the indications below.

Field	Description
User	The Linux user with writing access to the keystore’s directory.
Password	The Linux user’s password.
Host	The hostname or IP address of the machine where the keystore is located.
Port	The port on which the machine with keystore listens.
Path	An existing absolute directory to be used as the Encryption Keystore. The path must be in Linux format.

2. Click Test to verify the keystore accessibility (optional).

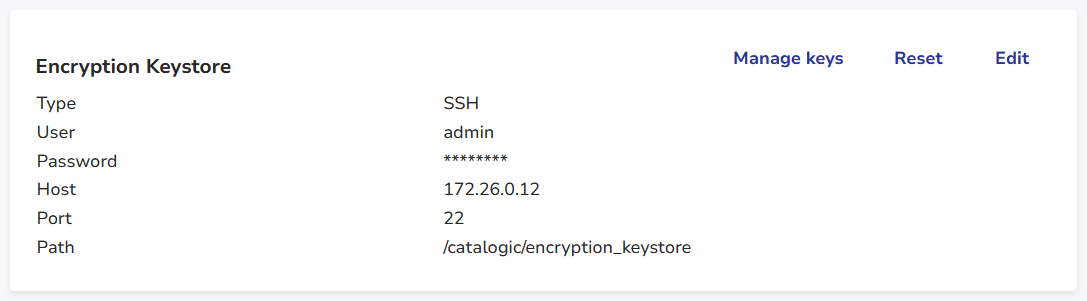

3. Click Save. The configuration is now saved. The connection will also be tested when saving.

See also.

For more information about the Encryption Keystore, see Remote Keystore.

Managing Keys

You can manage the keys in the keystore by clicking the Manage keys button to launch the Manage Keys dialog window.

The Manage Keys dialog window shows the list of all encrypted volumes on the vStor. Volumes with encryption key added to the Encryption Keystore are marked with .

To add encryption key to a volume, do the following:

1. Click the Add key button next to the desired volume to launch the Add Encryption Key button.

2. Type in the valid encryption key for the volume.
3. Click Save.

Important.

The encryption key you add to the Encryption Keystore must be the same as specified when enabling encryption for the volume. Otherwise, any decription operations will fail.

Deleting Keys

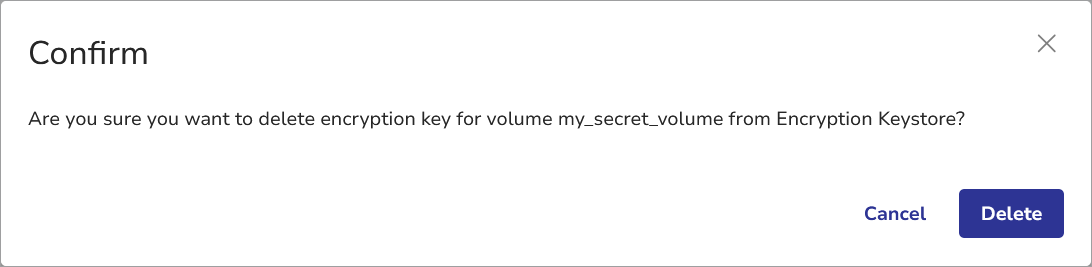

To delete a key from Encyption Keystore, hover over a row with Encryption Key added and click theicon. You will be prompted to confirm your decision. Click Delete.

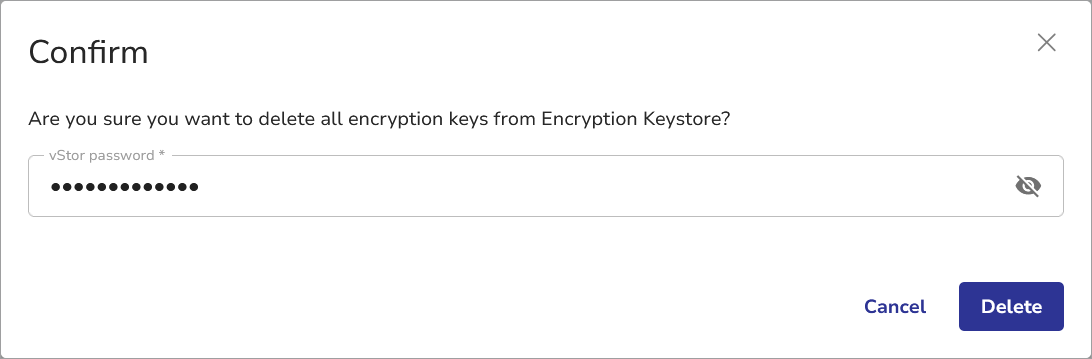

You can also delete all stored Encryption Keys using the Delete all keys button at the bottom of the Manage Keys dialog window. You will be prompted to confirm your decision by typing your vStor password. Click Delete.

Migrating Keystores

vStor supports key migration from and to both KMIP and SSH keystore.

To migrate your existing keystore:

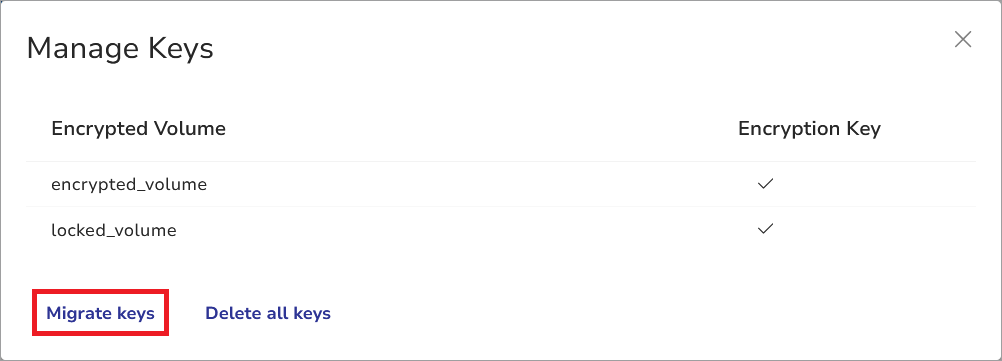

1. Go to the Encryption Keystore pane click Manage keys to launch the Manage Keys dialog window.

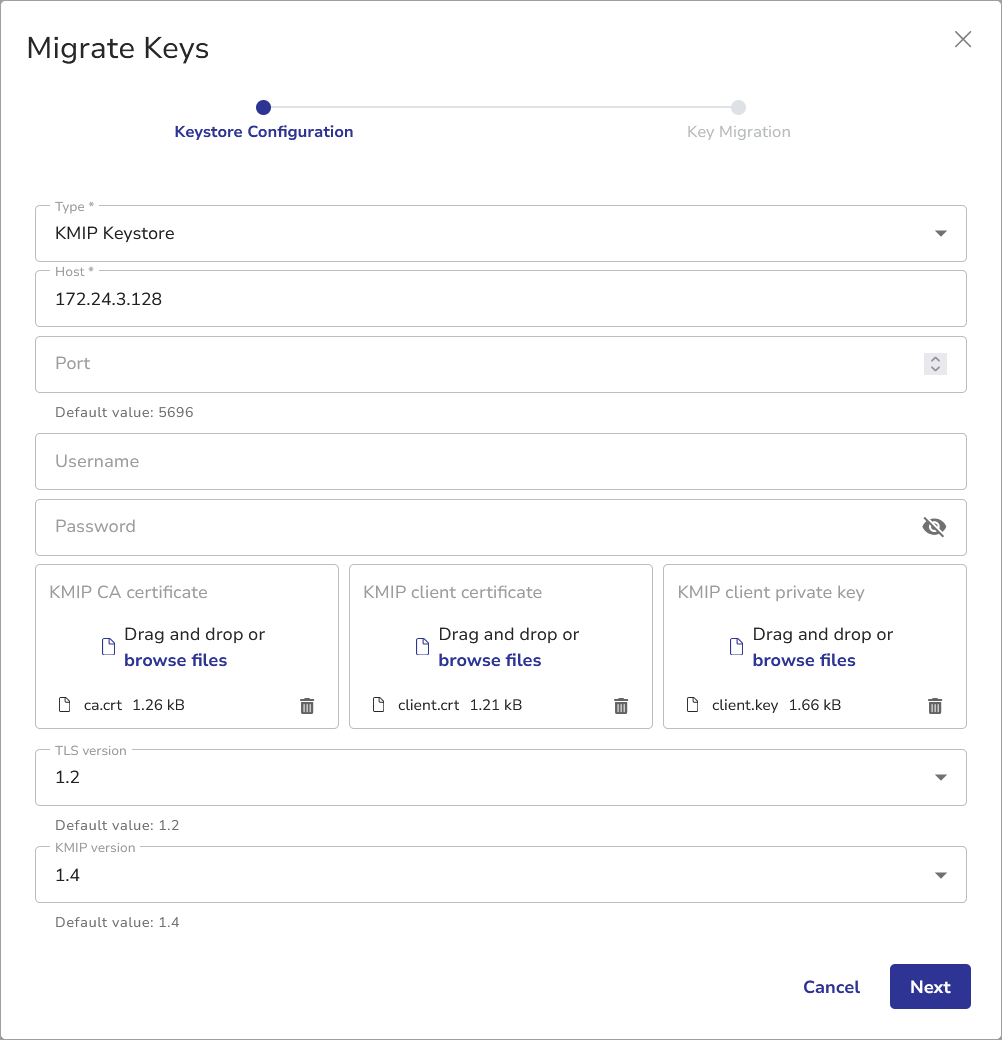

2. Click Migrate keys to launch the Migrate Keys dialog window.

3. Change the keystore type if necessary and provide all the necessary details.
   Click Next.

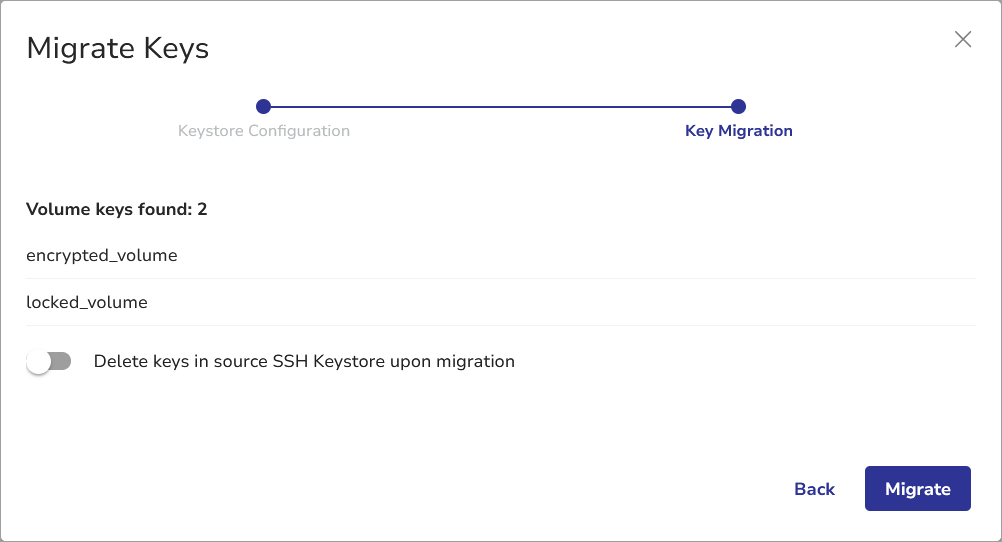

4. In step 2, all keys stored in the original Encryption Keystore are shown.
   Optionally, switch on the Delete keys in source keystore upon migration toggle. This operation must be confirmed with your user’s vStor password.

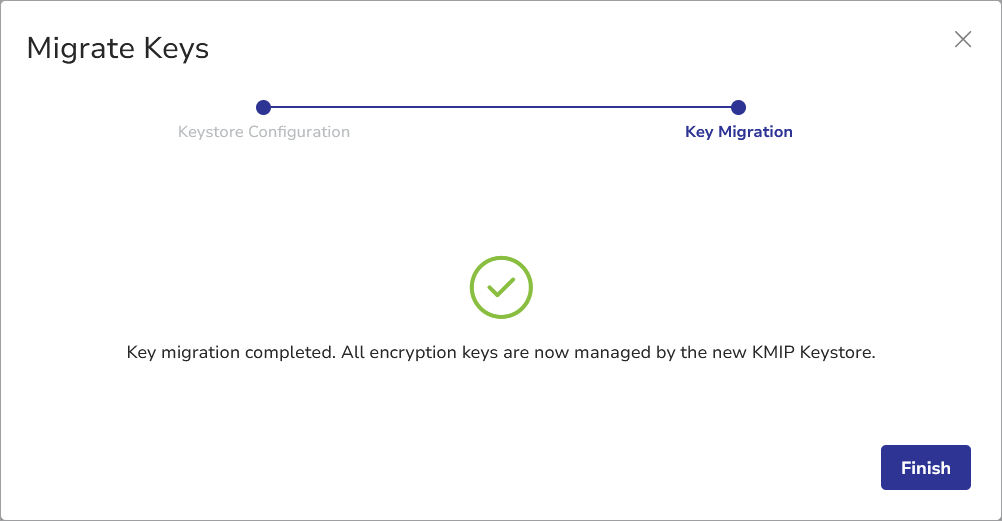

5. Click Migrate. When the operation is completed, you will be informed about the result.
   Click Finish.

Note.

No keys are deleted from the original keystore unless the migration has been successfully completed.

Resetting Encryption Keystore

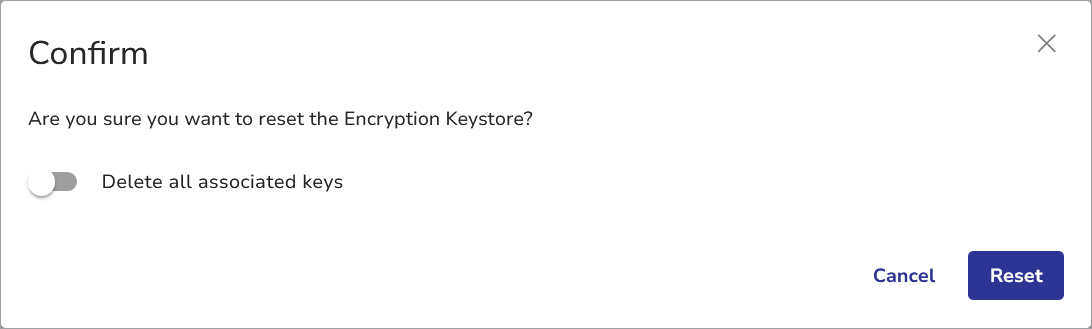

Use the Reset button to restore default values. You will be prompted to confirm your decision.

You can use the toggle to delete all associated keys from the keystore. You will need to confirm your decision by typing your vStor password.

Click Reset. The Encryption Keystore configuration will be cleared and all keys stored remotely by your vStor will be deleted from the remote location.

Telemetry

To help improve vStor, you can share usage data with Catalogic Software.

Collect telemetry data

Enables the collection of anonymous usage data.

Share collected telemetry data with Catalogic Software

Select this option to send the collected telemetry

Debug Logging

For in-depth troubleshooting, you can enable more detailed logging.

Generates detailed logs for troubleshooting vStor backend processes.

Important.

Before enabling debug logging, we recommend contacting the Catalogic Software Data Protection Technical Support, as the log files in debug mode may occupy a considerable amount of space.

Firewall

Use the toggle to enable or disable firewall.

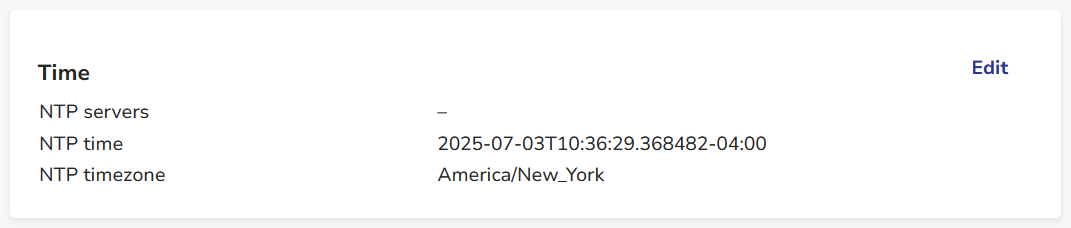

Time

By default, vStor uses your machine’s locale to determine the current time.

NTP Servers

The address of your preferred NTP server.

NTP Time

Allows you to manually set the system time. Enter the desired time in ISO 8601 format, which includes the date, time, and timezone offset.

Format: YYYY-MM-DDTHH:MM:SS.SSSSSS+HH:MM

Example: 2024-09-18T05:16:33.135311-04:00

This represents:

• Date: 2024-09-18 (September 18, 2024)
• Time: 05:16:33.135311 (5:16 AM, 33 seconds, and microseconds)
• Timezone offset: -04:00 (4 hours behind UTC)

NTP Timezone

Choose a new timezone from the dropdown list.

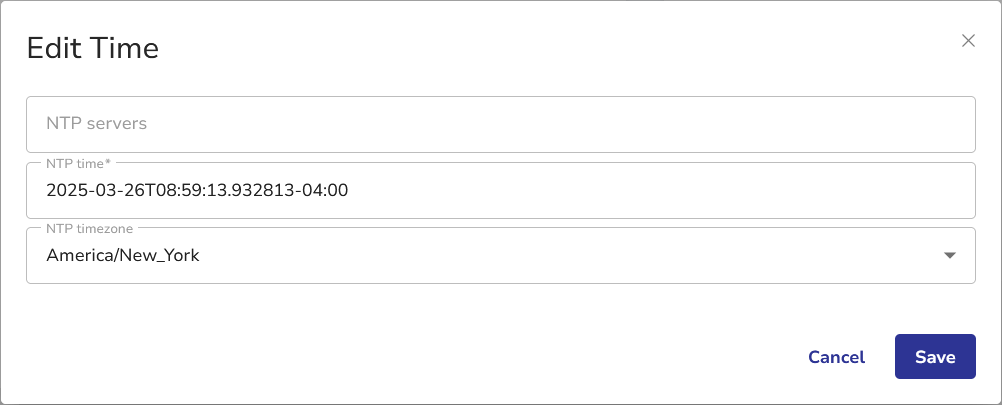

You can edit this section by clicking the Edit button to launch the Edit Time dialog window.

Deduplication

Data deduplication is a process of eliminating multiple copies of data to optimize storage usage. Instead, only unique data chunks are stored.

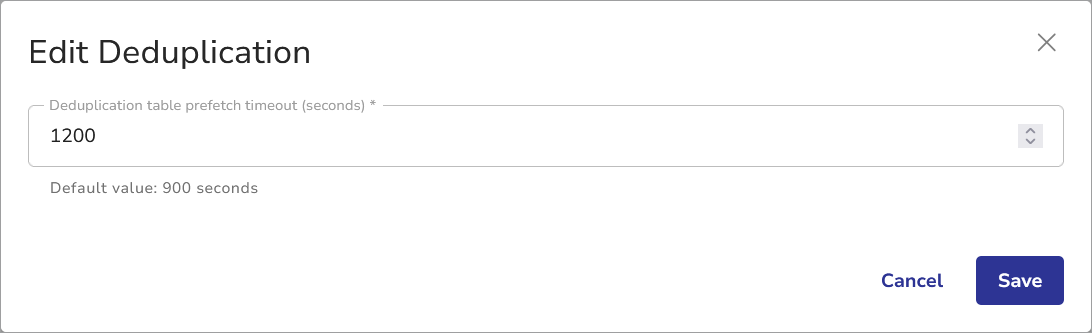

You can edit this section by clicking the Edit button to launch the Edit Deduplication dialog window.

Deduplication table prefetch timeout (seconds)

Defines the maximum time (in seconds) vStor will try to load the deduplication table into memory.

Tip.

Use the Reset button to restore the default value (900 seconds). You will be prompted to confirm your decision.

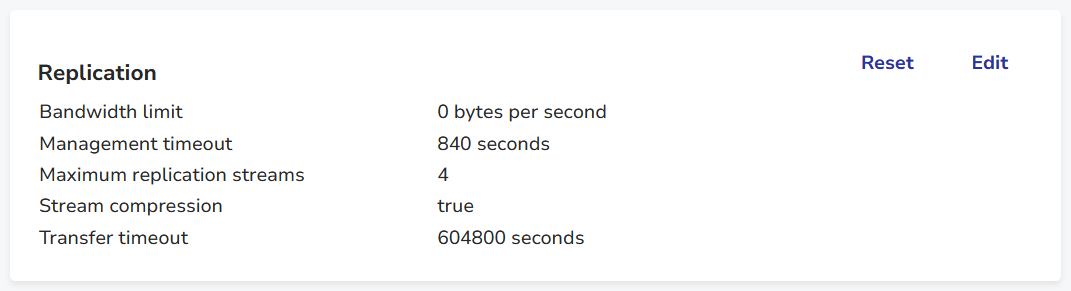

Replication

This section gathers data transfer settings for outbound replication traffic.

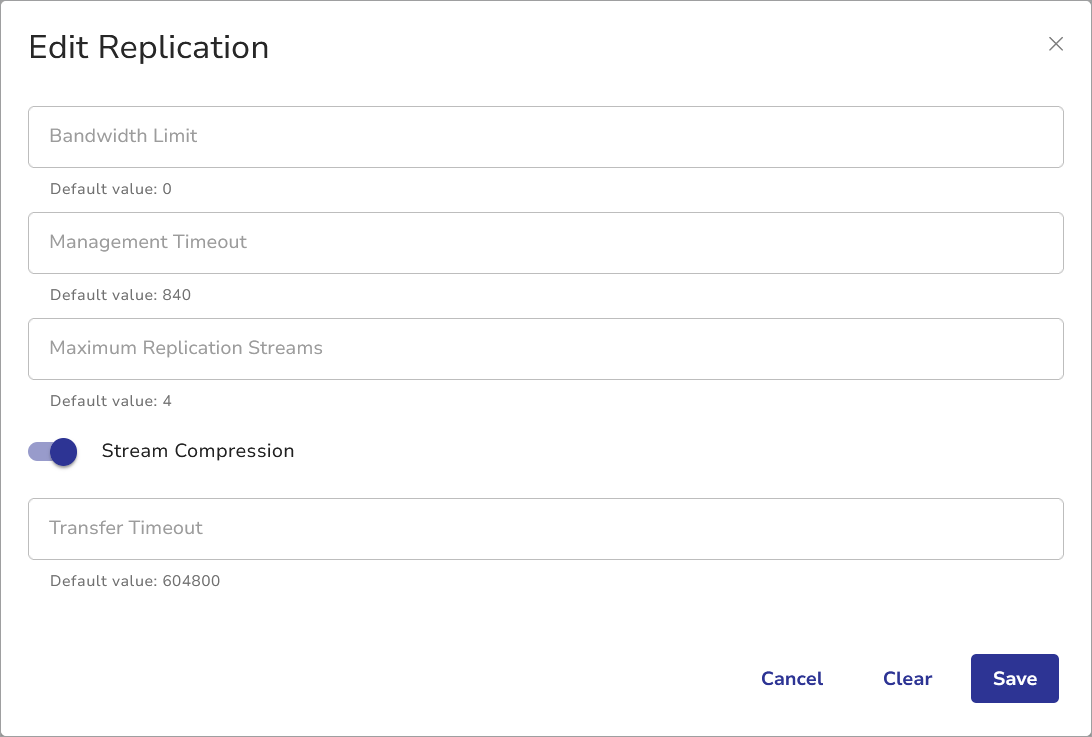

You can edit this section by clicking the Edit button to launch the Edit Replication dialog window.

Bandwidth limit

Defines the bandwidth limit in bytes per second.

Management timeout

Defines the timeout in seconds for requests made to vStor partners.

Maximum replication streams

Defines the maximum replication streams concurrently.

Stream compression

Defines if the replication stream is compressed.

Transfer timeout

Defines the replication transfer timeout in seconds.

Tip.

Use the Reset button to restore default values. You will be prompted to confirm your decision.

See also.

For more information about vStor replication and replication relationships, see Creating a Replication Relationship.

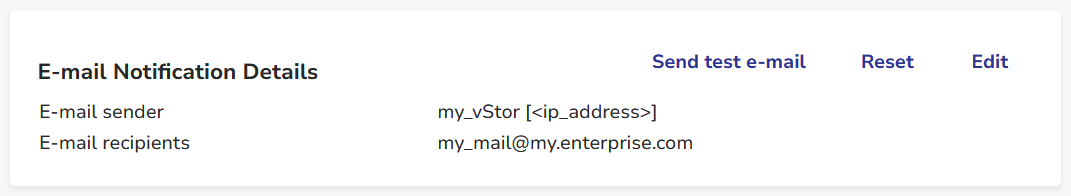

E-mail Notification Details

This section includes details concerning vStor e-mail notifications.

You can edit this section by clicking the Edit button to launch the Edit E-mail Notification Details dialog window.

E-mail Sender

Enter the sender name for vStor e-mail notifications.

E-mail Recipients

Enter the e-mail addresses that will receive notifications. Multiple recipients can be added by separating them with commas.

Tip.

• Use the Send test e-mail button to send a test notification and verify your e-mail configuration.
• Use the Reset button to restore default values. You will be prompted to confirm your decision.

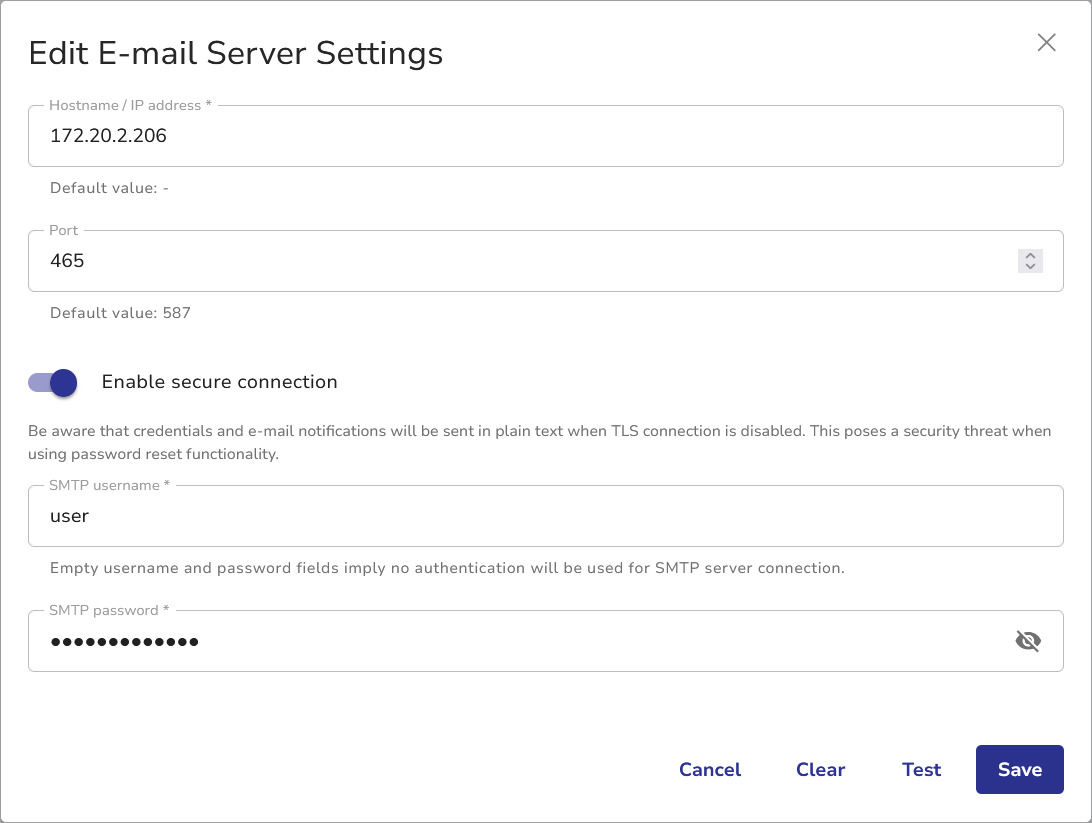

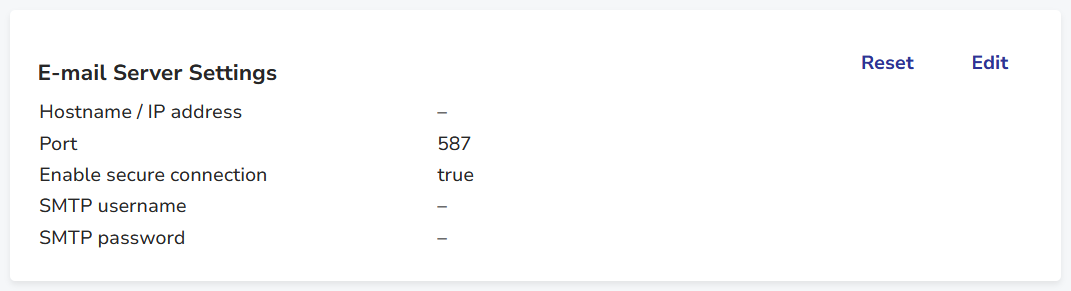

E-mail Server Settings

This section gathers e-mail notifications configuration for your vStor instance.

You can edit this section by clicking the Edit button to launch the Edit E-mail Server Settings dialog window.

Hostname / IP address

Your SMTP server address.

Port

The port your SMTP server uses (usually 25, 465 or 587).

Enable secure connection

With this option disabled, your e-mail credentials will be sent in plain text.

SMTP Username

Your SMTP server authentication username.

SMTP Password

Your SMTP server authentication password.

Tip.

• Use the Test button to verify e-mail server data (optional).
• Use the Reset button to restore default values. You will be prompted to confirm your decision.
